Infrared Spectrometer series 500

01 Overview

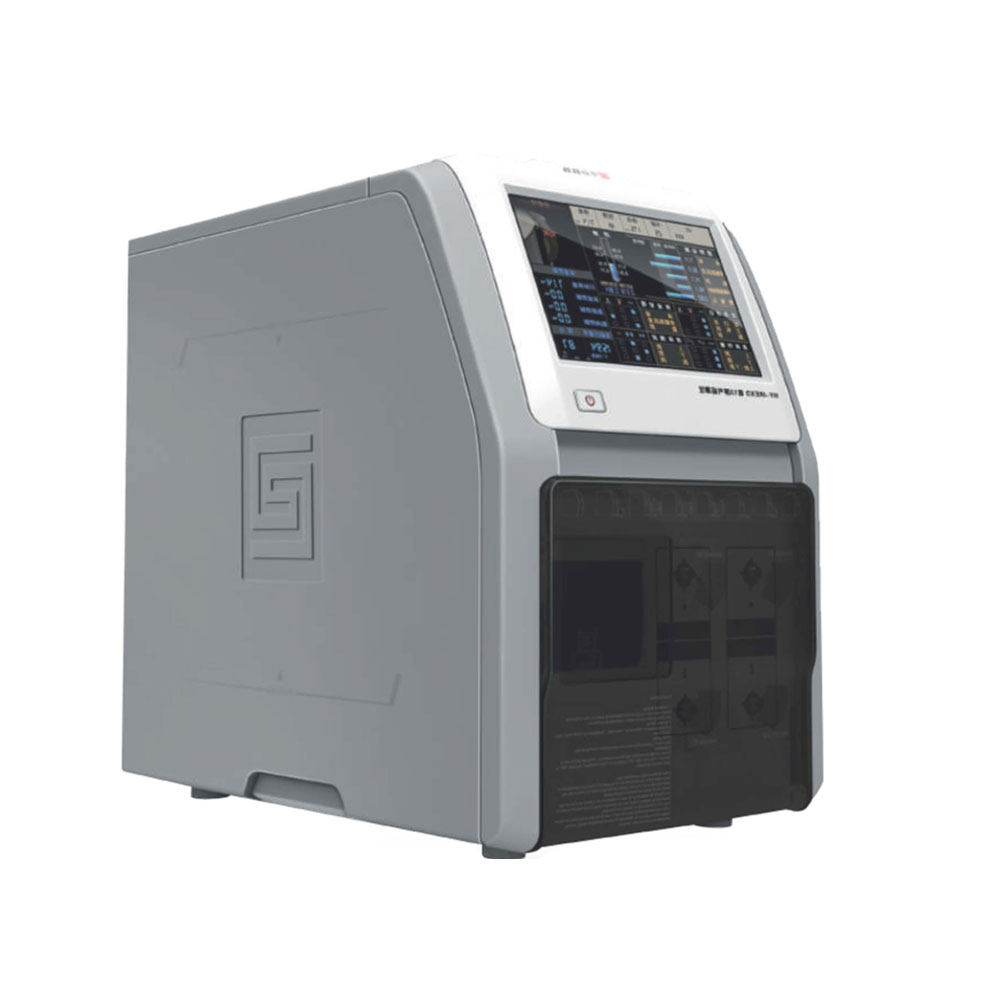

IR Force 500 is a state of the art instrument of great versatility that comes in a new compact and "all-in-one" format. This instrument does not require any other accessories as it is equipped with an integrated internal colour touch screen, IR analysis unit and computer.

02 Product Description

The principle functionality of IR Force 500 is based on the specific absorption of infrared light corresponding to the centre of the infrared spectrum, between 2 and 8 micrometres in wavelength (NDIR = Non Dispersive Infrared Spectroscopy).

The high selectivity of the infrated sensors is obtained through the saturation of the components 13CO2 and 12C02. The sensibility between 13C and the other concentration of 12C is reached thanks to a gas filter for the 12C02 in the channel of the 13C02 and a mathematical algorithm. In order to reach a high level of  accuracy, the temperature is stablished by a thermostat in such a way as to render the system thermally isolated.

The unit is made up of a comprehensive control panel, optical route and air channel, with an integrated LCD touch screen monitor, PC and micro-printer (with the possibility of connection with an external printer).

The four entry points for the bags of gas samples are connected directly to the apparatus by means of inlets situated on the mini front panel.

03 Main Characteristics

  1. 4-channel compact system (2 patients)
  2. Management system with integrated touch screen monitor
  3. Integrated motherboard
  4. 64 Gb ssd memory
  5. USB, Ethernet, VGA, AUX output
  6. Possibility of connection to host
  7. Wi-Fi / Ethernet connection
  8. Wi-Fi keyboard and mouse connection
  9. Built-in micro-printer
  10. Simple and intuitive internal software
  11. Management of the instrument even remotely via tablet (optional)
  12. Temperature-controlled reading
  13. Compensation of the internal temperature with ambient temperature
  14. Reading phases visible through a dedicated screen
  15. 10-inch display
  16. Possible extension in parallel to a second instrument
  17. Icons of the main functions visible on the tablet and of immediate intuition
  18. Windows software platform 10.1
  19. Possibility of Editable Report in Word
  20. Word Report Automatically exported With the patient's name and surname + the date the test was performed
  21. Possibility to read patient info from BarCode
  22. Possibility of translation in the preferred language
  23. Ability to load and display on the display in which position you are about to perform the test
  24. Archive of all the tests carried out that can be consulted via the appropriate button in the software
  25. Remote connection via Team Viewer
  26. Self check visible in the three phases: temperature, voltage, air circuit
  27. Test grid executed with time 0, time 30, DOB, positive / negative values
  28. No extraordinary maintenance
  29. Auto check for voltage evaluation on 12c / 13c
  30. Automatic calibration and without additional costs through exhalation with CO2 at 5% of the operator
  31. Response in 191 seconds
  32. 12 / 13c reading curves visible to the operator during the reading phase
  33. Report with DOB + outcome (positive / negative)
  34. Report in A4 format
  35. Ability to translate software into the required language
  36. Does not require dedicated personnel
  37. No limit of daily test execution
  38. Automatic air circuit cleaning with each test
  39. Reading through aluminum bags with flexible cannula + cap (no latex)
  40. Latest generation infrared reading system (NDIR)
  41. Back filter for CO2 and condensate cleaning and dust filter
  42. Fault signal in the absence of CO2 sufficient to carry out the test
  43. Export of data in Excel format
  44. Preloaded Windows office
  45. Visible reading curve in real time
  46. Storage of calibration curves
  47. Printing of the curves in A4 format with graph and relative dilutions
  48. Calibration dilution up to 13 points
  49. Insertion of patient data before or after the test
  50. Search for patient data
  51. Statistics by gender / date
  52. Statistics by gender / date
  53. Operator's manual integrated into the software
  54. Validation or cancellation of executed tests
  55. External b / w laser printer

04 Specifications

Infrared spectrometer in non-dispersive mode (NDIR)

Producer RICHEN MEDICAL SCIENCE
Environment Room temperature: from 5 °C to 4 0 °C
Altitude: < 2000 meters above sea
Relative humidity (RH): < 80%

Dimension, weight and electric characteristics

Height mm 400±20
Width mm 500±20
Depth mm 270±20
Weight kg 15
Feed l00V. – 240V.AC – 50Hz
Absorbition 0,5 A
Gas All gasses are transported in the analyser by means of an integrated pump. An anti-dust filter and a C02 filter impede any type of contamination of the analyser from any type of air from the instrument.
